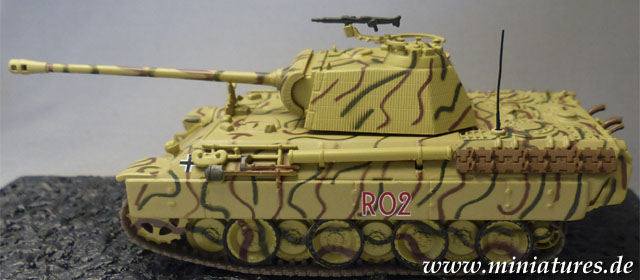

Panzer V “Panther” Ausf. A Medium Tank
The Pz.Kpfw. V “Panther” Ausf. A, Sd.Kfz. 171, differs externally from the older Ausführung D by the ball-shaped mantlet for the bow machine gun, the improved commander‘s hatch, and the elimination of the round ammunition hatch on the rear left side of the turret.
Available Scale Model Kits
- Pz.Kpfw. V “Panther” Ausf. A (early), 1:35 Dragon 6160
- Pz.Kpfw. V “Panther” Ausf. A (late), 1:35 Dragon 6358
- Pz.Kpfw. V “Panther” Ausf. A, 7.5 cm KwK 42 L.70, 1:72 Revell 03107
- 7.5 cm KwK 42 L70 (Aluminium/Brass), 1:72 RB Model 72B07
- Pz.Kpfw. V “Panther” Ausf. A (Pz.Gren.Div. Großdeutschland), 1:72 Altaya 27
- Pz.Kpfw. V “Panther” Ausf. A (Dunkelgelb nach Muster), 1:72 CDC 3161
- Pz.Kpfw. V “Panther” Ausf. A (2-colour camo), 1:72 CDC 3160
- Pz.Kpfw. V “Panther” Ausf. A (2-colour camo), 1:72 Matchbox DYM37581
- Pz.Kpfw. V “Panther” Ausf. A (3-colour camo), 1:72 CDC 3162
- Pz.Kpfw. V “Panther” Ausf. A (R02, Normandy, 1944), 1:72 Altaya AV05
- Pz.Kpfw. V “Panther” Ausf. A (R02, Normandy, 1944), 1:72 De Agostini
- Pz.Kpfw. V “Panther” Ausf. A, 20 mm BP Cast GR119
- Pz.Kpfw. V “Panther” Ausf. A (Polypropylene), 1:76 Airfix
- Pz.Kpfw. V “Panther” Ausf. A, 1:87 WTD 33
- Pz.Kpfw. V “Panther” Ausf. A, Sd.Kfz. 171, 1:87 Trident 97007
- Pz.Kpfw. V “Panther”, 1:100 Roskopf 49
- Pz.Kpfw. V “Panther” Ausf. A, 1:285 GHQ Models G81
Technical Specifications
- Panzerkampfwagen V “Panther” Ausf. A, Sonderkraftfahrzeug 171
- Type: Medium Tank
- Engine: Maybach HL 230 P 45, 12-cylinder, 23000 cc, with 700 hp
- Speed: 46 km/h on roads, 24 km/h cross-country
- Fuel Capacity: 720 l
- Cruising Range: 177 km on roads, 89 km cross-country
- Length: 8860 mm
- Width: 3430 mm
- Height: 3100 mm
- Weight: 45500 kg
- Armament: 7.5 cm L.70 KwK 42,
7.92 mm hull, turret, and AA machine guns - Armour Penetration at 0–100 m
- 170 mm using A.P. (Pz.Gr. 39)
- 210 mm using A.P. (Pz.Gr. 42)
- 239 mm using A.P.C.R. (Pz.Gr. 40)
- 298 mm using A.P.D.S. (Pz.Gr. 44)
- Crew: Commander, Driver, Gunner, Loader, Radio Operator
- Production: August 1943 – Juni 1944 (2192 units)
Historical Employment
- German Army, March 1943 – April 1945
- Soviet Army, 1944–1945
- French Army, 1945–1950
From March 1944 until the end of the war, the Panzerkampfwagen V “Panther” was produced in the Ausführung G version.
